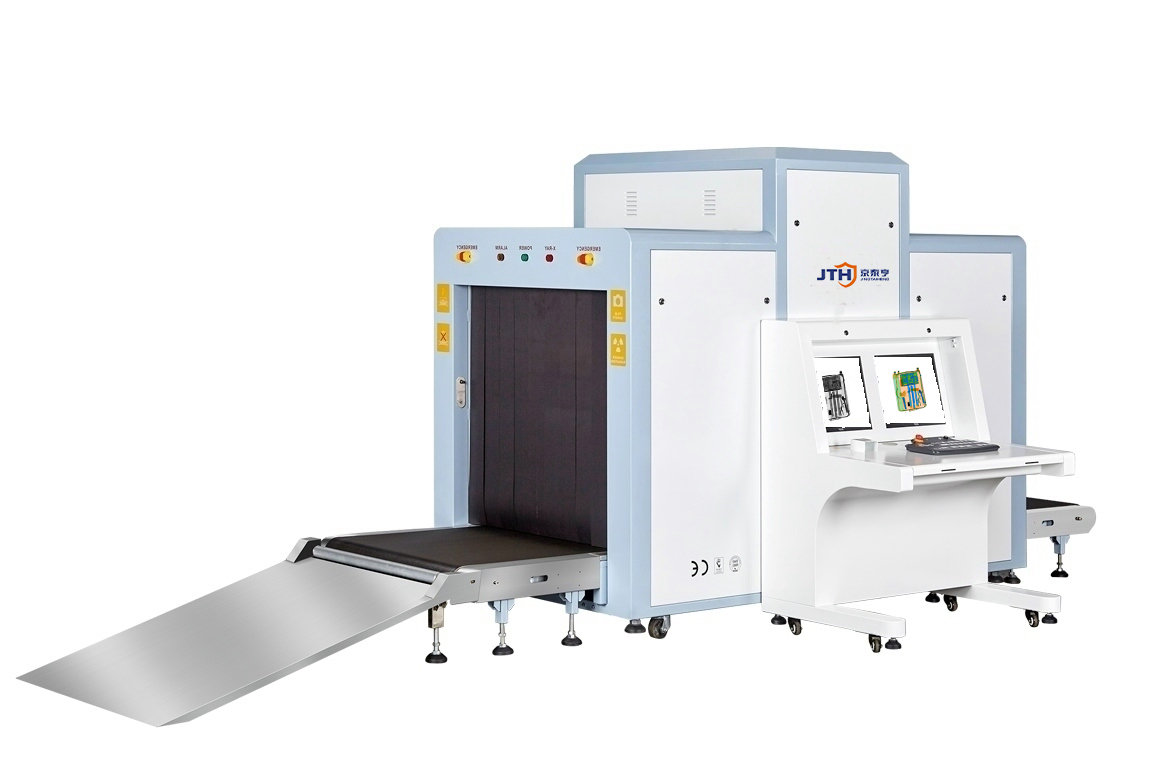

X-ray Baggage Scanner

Model: JT-100100 ------ scan oversize objects

General Specification

●  Tunnel Size: 1000(W)*1000(H)mm

●  Conveyor Speed: 0.22m/s

●  Conveyor Max Load: 200kg

●  Dose per Inspection < 1.7μGy/h

●  Resolution: 32AWG to 40AWG

●  Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm

●  Penetrate  resolution: 24WG to 34AWG

●  Penetration: 43mm Steel

●  Film Safety: Guarantee ISO1600 Film

●  X-ray Leakage: <0.1 μGy/h (at a distance of 5cm From external housing)

X-ray Generator

● Generate direct: Downward

● Generate anger: 80 degree

● Anode Voltage: 100~160Kv

●Anode power: 0.4 to 1.2mA

● Cooling / Duty Cycle: Oil Cooling /100%
Image System

●  X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

●  Monitor: High Resolution Color, LCD Accord, 17 or 19inch

●  Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

●  Image Grey Level: 4096

Image Max Resolution: 1024 * 1280 pixel

●  Image Processing: 24bit for processing real time

●  Image storage: Storage 60000 pictures in real time

●  Zoom: 2,4,8,16 Times Enlarge, Whole screen continuous observation

●  Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green

●  High-energy/low energy       : switch from high energy to low energy

●  Assist to detect drug and explosive powder

Installation Data

●  Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)

●  Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)

●  Operation Power: 220VAC(±10%)50±3Hz

●  Power Consumption: 1.0 KW (max), 1.0KW(working)

●  Noise: <58db
